V-Belts
Wrapped V-Belt

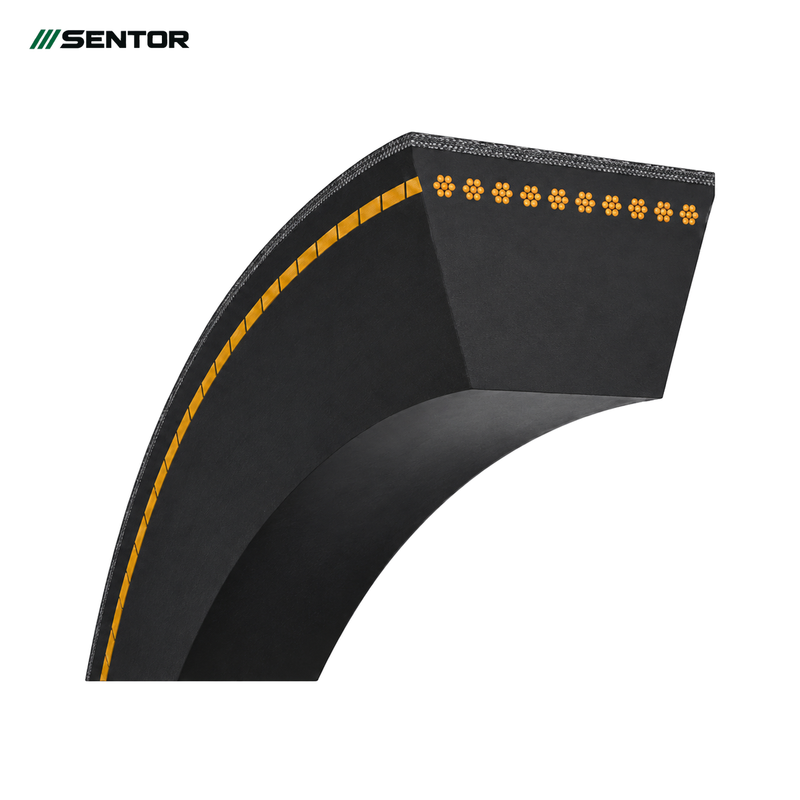

Fabric-wrapped V-belts in the classical and light sections listed in the SENTOR transmission catalogue. The catalogue lists CR, NR and SBR materials; specify the exact section and the length marking shown for that row.
Tell us the section or belt construction, quantity and application.
PRODUCT OVERVIEW
Built around your application.
For a quotation, provide the belt section, catalogue length marking, quantity and drive application. Please include the marking on your existing belt when available.
TECHNICAL INFORMATION
Technical specifications
On small screens, scroll tables horizontally to view all columns.
| Parameter | Specification / selection |
|---|---|
| Sections | Z, A, AB, B, BC, C, CD, D, E, F, 3L, 4L, 5L |
| Materials listed | CR, NR, SBR |
| Length mark | Li for Z, A, AB, B, BC, C, CD, D, E and F; not specified for 3L, 4L or 5L |
| Length expressions | Follow each catalogue row exactly; do not substitute Lw with another symbol |
| Reinforcement material | Not specified in this catalogue |
Classical wrapped and light sections — formal catalogue
Scroll the table horizontally to view all columns. Values and length symbols follow the cited catalogue.
| Type | Top width (mm) | Pitch width (mm) | Height (mm) | Angle | Length conversion — as printed | Length range (inch) | Length range (mm) | Length mark |
|---|---|---|---|---|---|---|---|---|
| Z | 10 | 8.5 | 6 | 40° | Li=Lw-22 | 13"-196" | 330-5000 | Li |
| A | 13 | 11.0 | 8 | 40° | Li=Lw-30 | 14"-236" | 356-6000 | Li |
| AB | 15 | 12.5 | 9 | 40° | Li=Lw-35 | 47"-394" | 1194-10000 | Li |
| B | 17 | 14.0 | 11 | 40° | Li=Lw-40 | 19"-394" | 483-10000 | Li |
| BC | 20 | 17.0 | 12.5 | 40° | Li=Lw-48 | 47"-394" | 1194-10008 | Li |
| C | 22 | 19.0 | 14 | 40° | Li=Lw-58 | 29"-708" | 737-18000 | Li |
| CD | 25 | 21.0 | 16 | 40° | Li=Lw-61 | 47"-394" | 1194-10008 | Li |
| D | 32 | 27.0 | 19 | 40° | Li=Lw-75 | 80"-630" | 2032-16000 | Li |
| E | 38 | 32.0 | 23 | 40° | Li=Lw-80 | 118"-708" | 2997-18000 | Li |
| F | 50 | 42.5 | 30 | 40° | Li=Lw-158 | 177"-708" | 4500-18000 | Li |
| 3L | 9.8 | / | 5.6 | 40° | / | / | / | / |
| 4L | 12.7 | / | 8 | 40° | / | / | / | / |
| 5L | 16.8 | / | 10.5 | 40° | / | / | / | / |
SENTOR Transmission Belt Catalogue · printed page 09. Li and Lw are retained exactly as printed. A slash means the catalogue supplies no value; no length marking or conversion is inferred for 3L, 4L or 5L.
FEATURES & BENEFITS
A practical specification. A clear choice.
Classical and light section profiles
CR, NR and SBR listed in the catalogue
Row-specific length marking and conversion
APPLICATIONS
Where it works
Suitability depends on operating conditions and the selected specification.
